DS 1" BSP
SGD 3.90
Dimensions (mm)
O.D.
I.D.
Metal Washer I.D.
Metal Washer Thickness
A
B
C
D
42.7
29.7
33.8
2.5
Dowty Bonded Seal 6mm (Metric Size)
DS 6mm

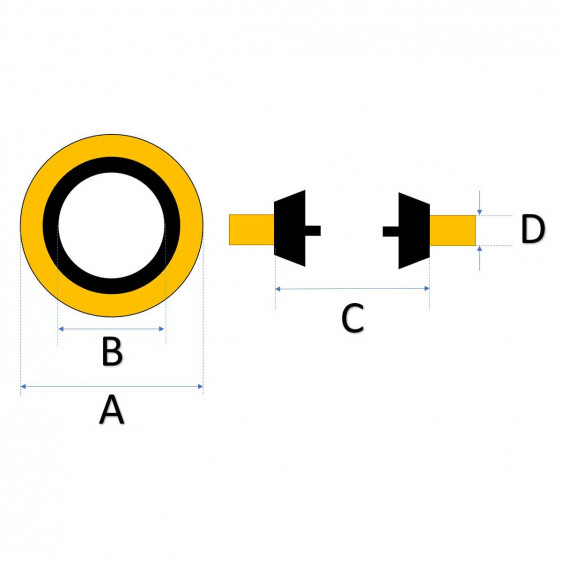

| Dimensions (mm) | |||
| O.D. | I.D. | Metal Washer I.D. | Metal Washer Thickness |
| A | B | C | D |
| 10 | 6.5 | 8 | 1 |
SGD 1.40

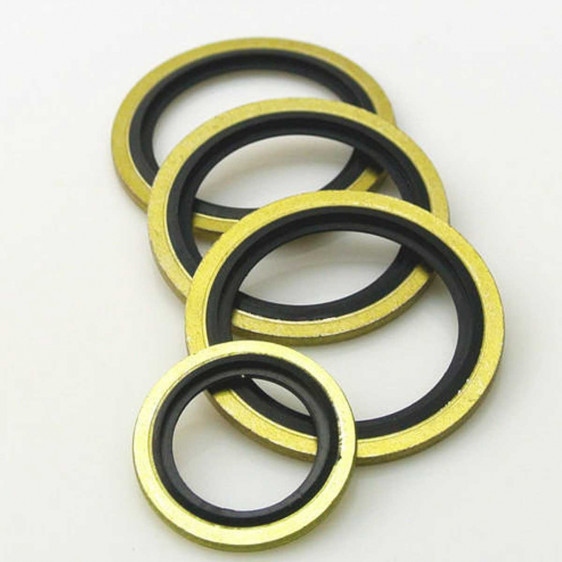

This Dowty Bonded Seal / Dowty Seal is a metal washer with a centre ring of rubber for usage in high pressure applications. The flexing action of the rubber under pressure gives a leak proof seal against wide range of fluids.
This item is suitable for metric sizing.
Related products
DS 3/4" BSP
SGD 3.70
Dimensions (mm)
O.D.
I.D.
Metal Washer I.D.
Metal Washer Thickness
A
B
C
D
27.7
24.3
30.5
2
DS 7/8" BSP
SGD 3.30
Dimensions (mm)
O.D.
I.D.
Metal Washer I.D.
Metal Washer Thickness
A
B
C
D
31.8
23.5
25.4
2.35
DS 3/4" BSP
SGD 3.30
Dimensions (mm)
O.D.
I.D.
Metal Washer I.D.
Metal Washer Thickness
A
B
C
D
26.8
15.9
20.6
2.4
DS 1/2" BSP
SGD 2.60
Dimensions (mm)
O.D.
I.D.
Metal Washer I.D.
Metal Washer Thickness
A
B
C
D
28.6
18.6
21.3
2.5
DS 3/8" BSP
SGD 2.60
Dimensions (mm)
O.D.
I.D.
Metal Washer I.D.
Metal Washer Thickness
A
B
C
D
23.8
17.4
19.8
2
DS 9/16" UNF
SGD 2.40
Dimensions (mm)
O.D.
I.D.
Metal Washer I.D.
Metal Washer Thickness
A
B
C
D
22.2
12.1
14.4
1.85
DS 1/4" BSP
SGD 2.40
Dimensions (mm)
O.D.
I.D.
Metal Washer I.D.
Metal Washer Thickness
A
B
C
D
20.5
13.6
15.5
2
