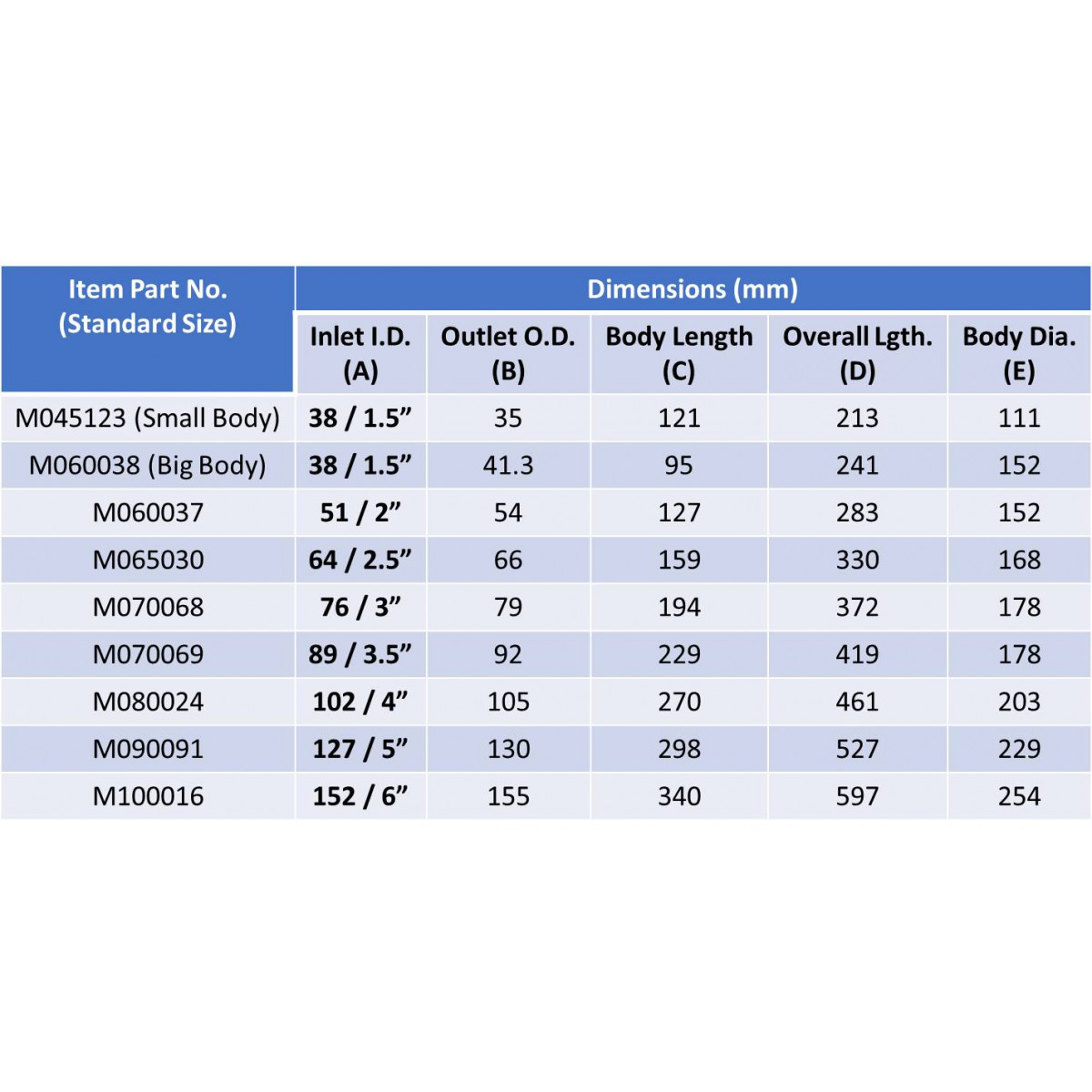

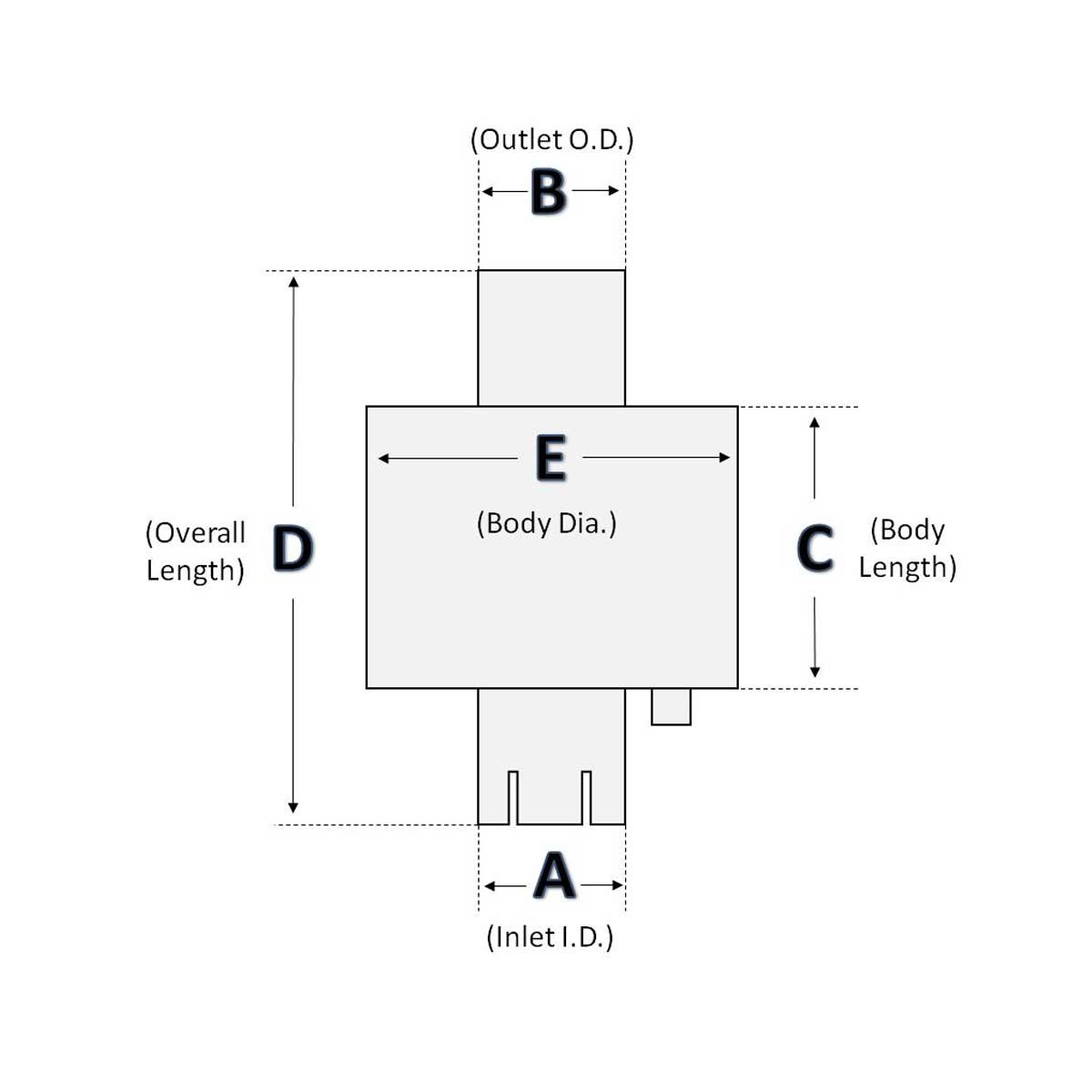

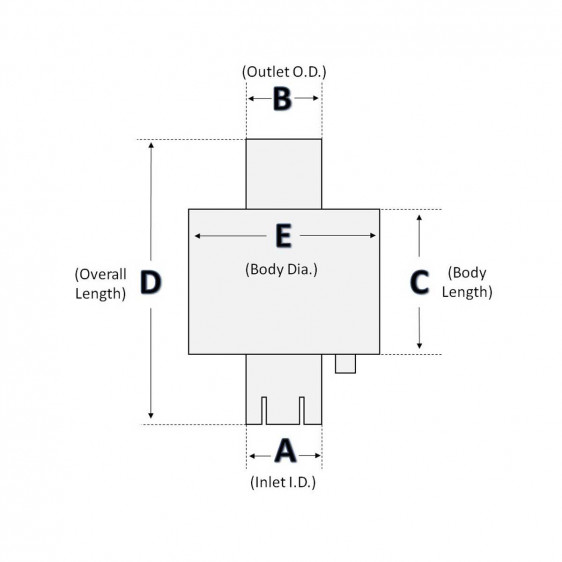

Donaldson Part No. (Standard Size) | Dimensions (mm) | ||||
Inlet I.D. | Outlet O.D. | Body Length | Overall Lgth. | Body Dia. | |
(A) | (B) | (C) | (D) | (E) | |
M045123 (Small Body) | 38 / 1.5” | 35 | 121 | 213 | 111 |
Brand: Donaldson

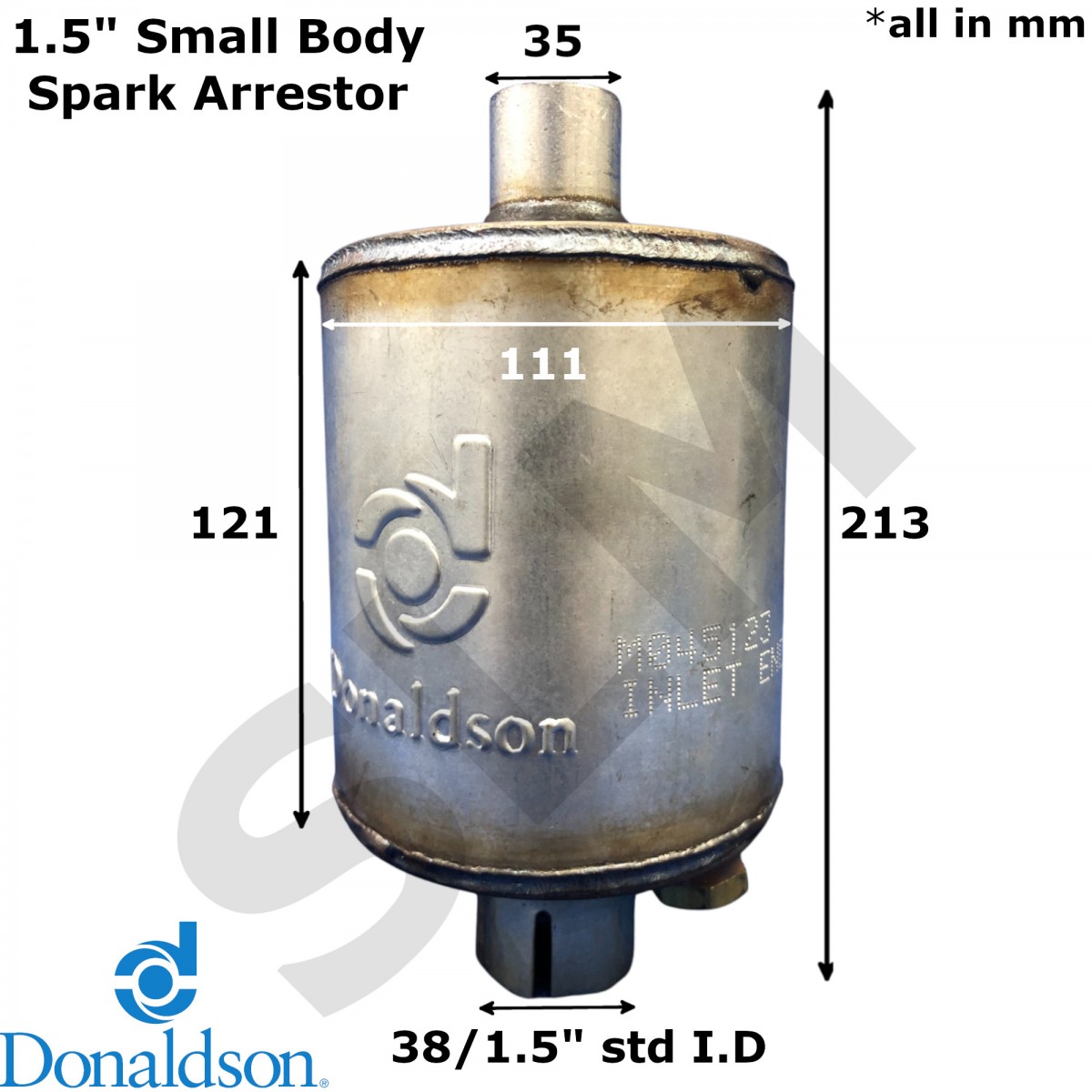

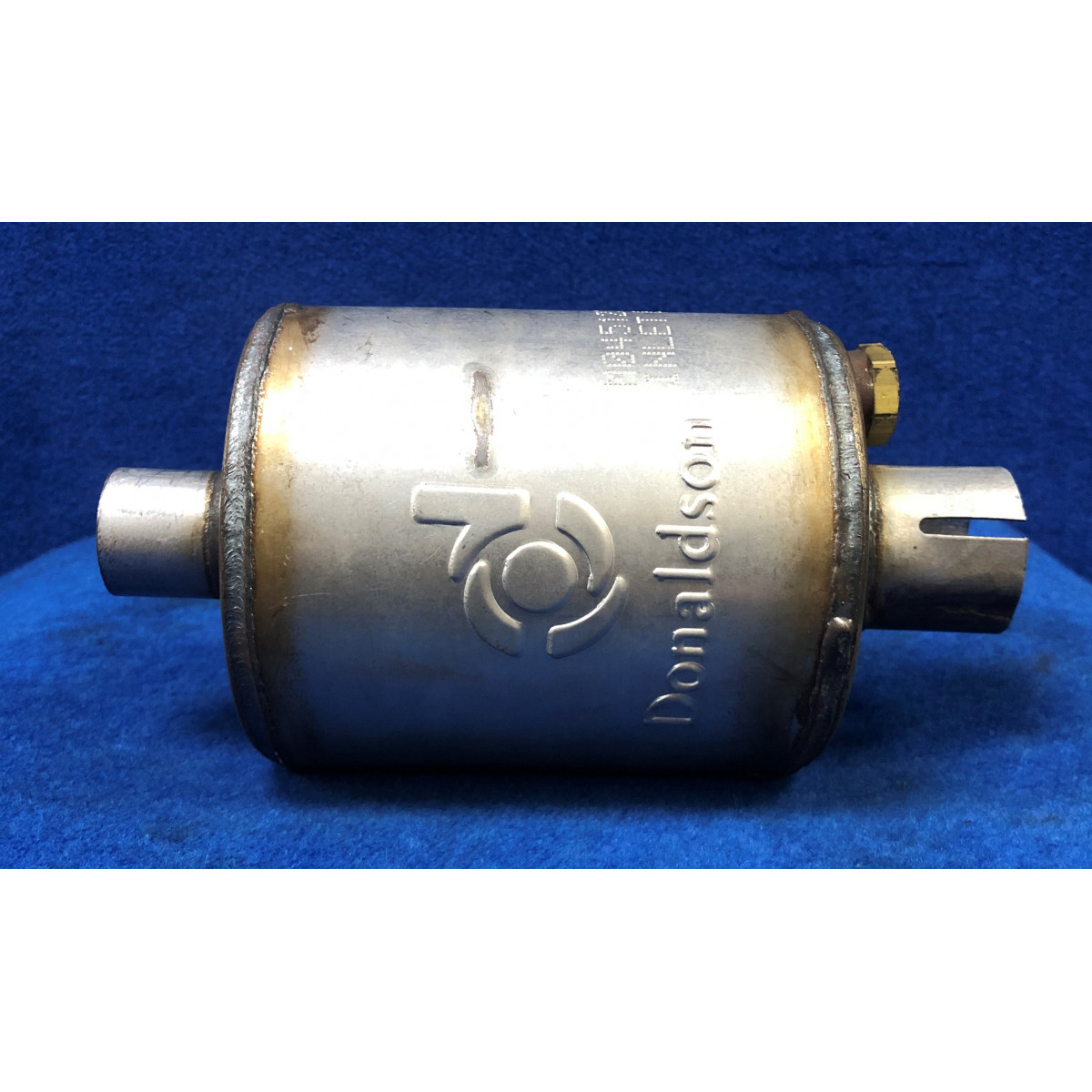

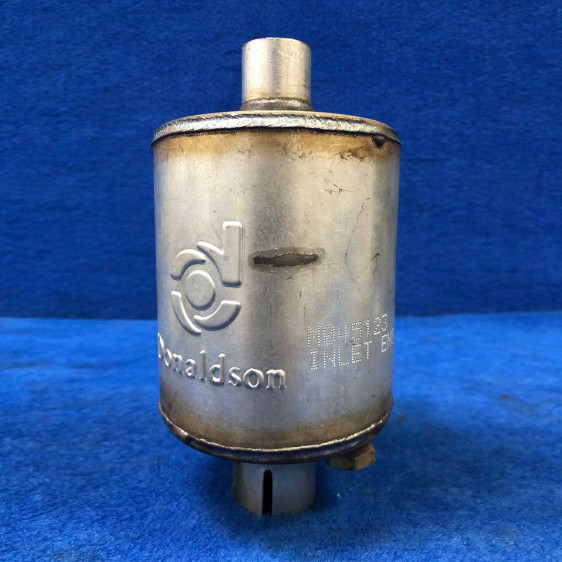

Donaldson Spark Arrestor M045123 (Small Body) Inlet 1-1/2" (1.5") / 38mm. Comes complete with appropriate sized U-Clamp & Certificate of Approval.
Traps hot exhaust particles expelled in exhaust systems, crucial for fire prevention. Suitable for use in Jurong Island and Changi Airport or areas with high fuel content.
Colour: Silver
Please check body dimension of spark arrestor before ordering as there may be space limitation at the installation site. Any modified items (inlet size) will not be eligible for refundable terms.
