Exhaust Flexible Pipe/Bellow (3 Ply) 4" x O/L 6"

FP40006HD

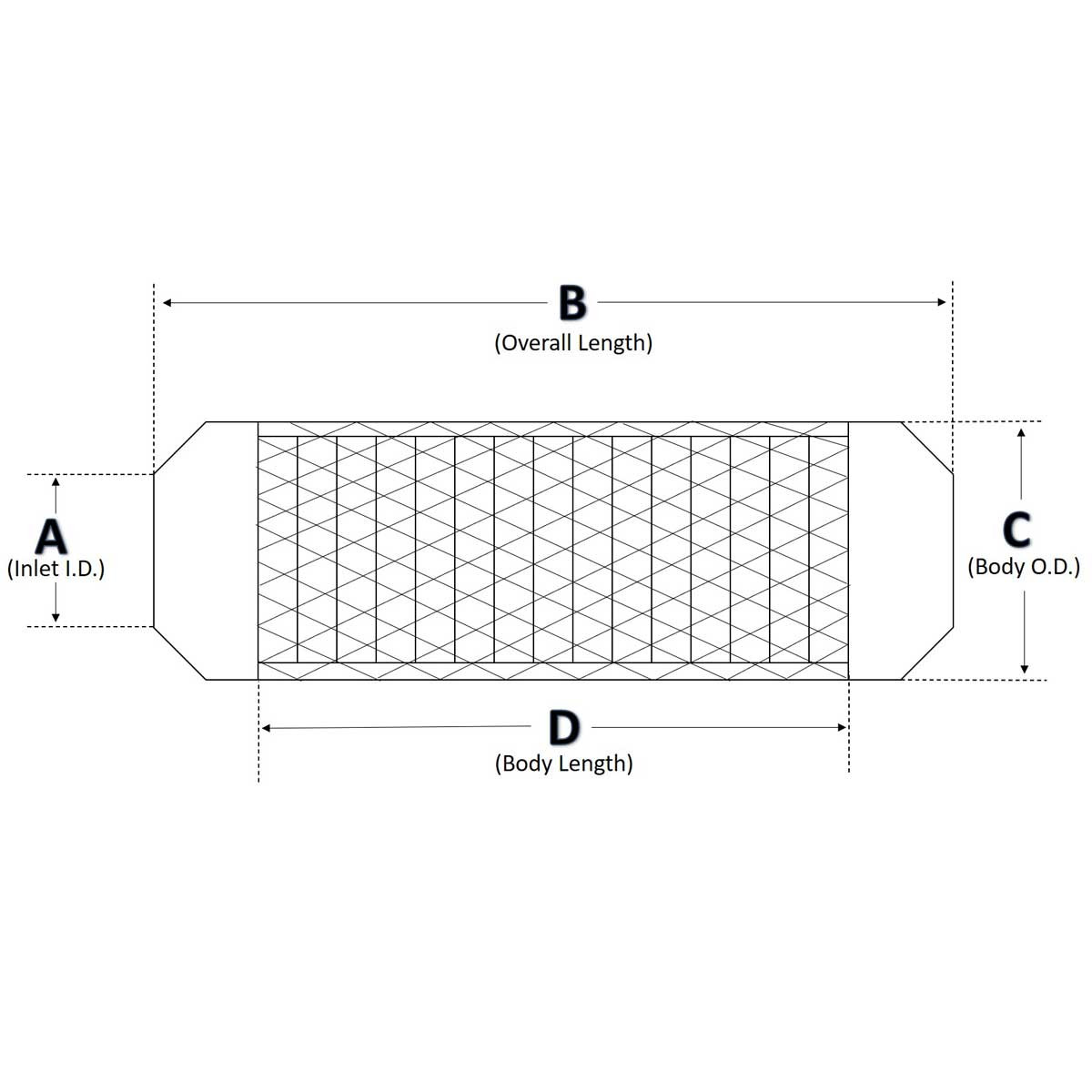

Inlet I.D. (A) Overall Length (B) Body O.D. (C) (mm) Body Length (D) (mm)
Inch mm Inch mm
4"  102 6" 152 127 90
Read more
SGD 156.20
Product Details

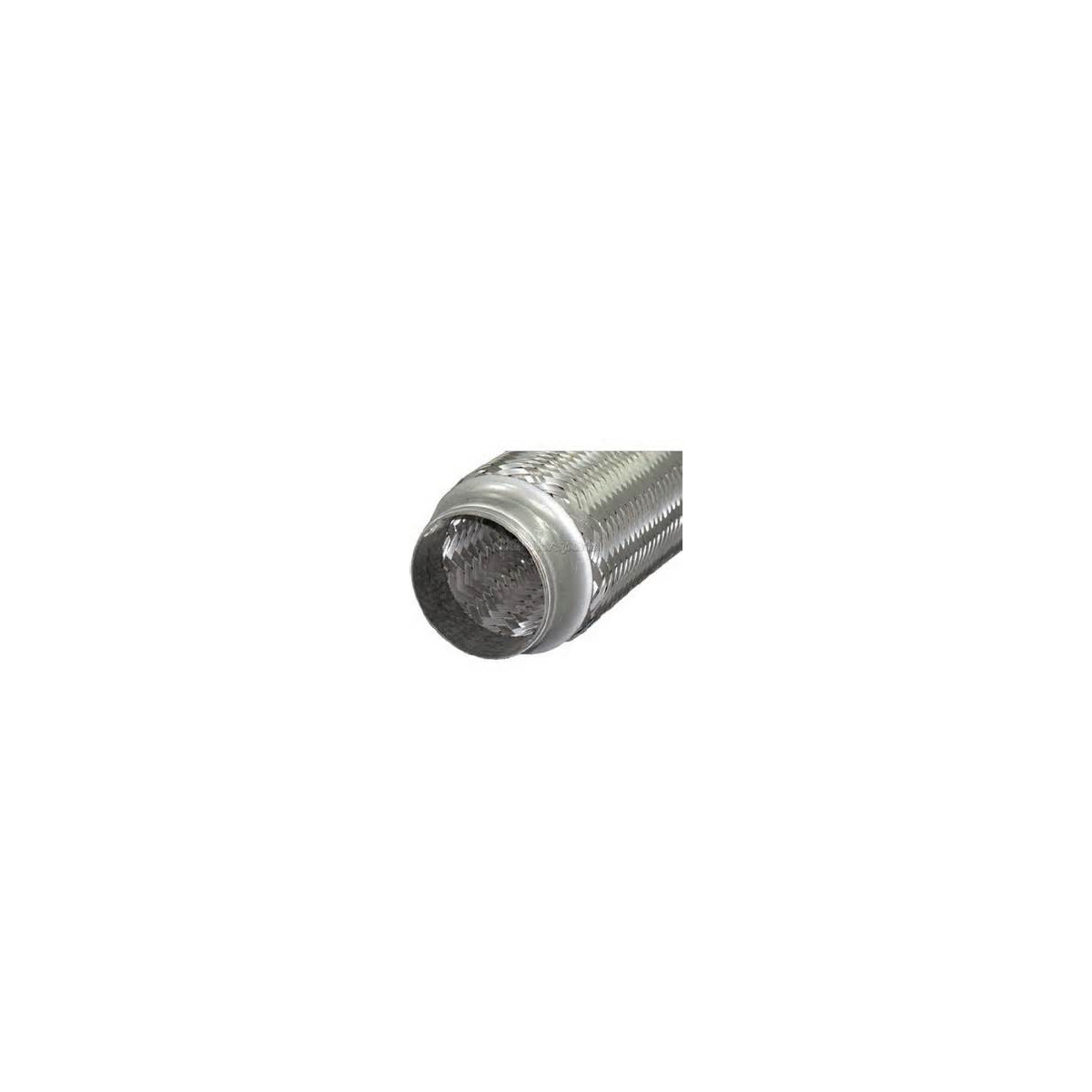

Exhaust Flexible Bellow / Exhaust Flexible Pipe to absorb vibration. The inner convoluted bellow is Stainless Steel material and the outer steel wire braid and end cap are Galvanised Steel material, suitable for welding. This item is 3 ply layered for better absorption and longer lasting.

Take note that for welding, the pipe must be inserted into the bellow and welded on the seams. Do not insert the bellow into the pipe to weld as the end cap is susceptible to breaking off.

Pipe OD is the Exhaust Flexible Bellow's ID.

Suitable for various pipe sizes and lengths. Feel free to contact us to enquire more or for custom fabrication works.

Read more
Specifications
FP40006HD
