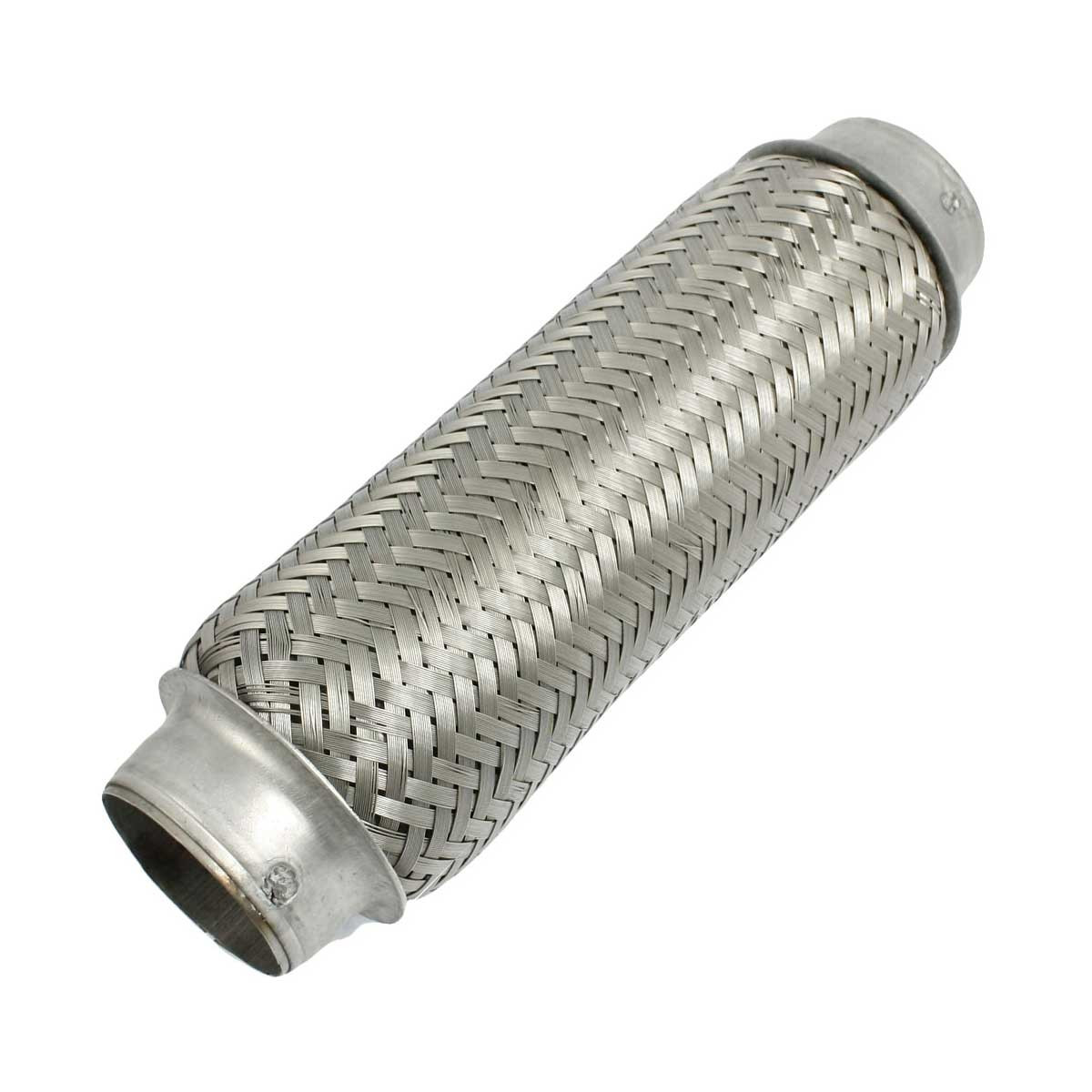

Exhaust Flexible Pipe/Bellow (2 Ply) 1.25" x O/L 4"

Inlet I.D. (A) Overall Length (B) Body O.D. (C) (mm) Body Length (D) (mm)
Inch mm Inch mm
1.25" / 1-1/4 " 32 4" 102 48 76
Read more
SGD 36.10
Product Details

Exhaust Flexible Bellow / Exhaust Flexible Pipe to absorb vibration. The inner convoluted bellow is Stainless Steel material and the outer steel wire braid and end cap are Galvanised Steel material, suitable for welding.

Take note that for welding, the pipe must be inserted into the bellow and welded on the seams. Do not insert the bellow into the pipe to weld as the end cap is susceptible to breaking off.

Pipe OD is the Exhaust Flexible Bellow's ID.

Suitable for various pipe sizes and lengths. Feel free to contact us to enquire more or for custom fabrication works.

Read more
Material S/S (Convoluted Bellow) & Galv. Steel (Wire Braid & End Cap)
